| General Parameters: |
|---|
| Status: | Active |
|---|
| Passband (GHz): | DC to 10 |
|---|
| 3 dB Bandwidth (GHz): | 10.5 |
|---|
| Cut-Off Frequency (GHz): | 10 |
|---|
| Insertion Loss (dB): | 2 dB |
|---|
| VSWR: | 1.5:1 Max |
|---|
| Rejection: | -25 dB Min @ 11.5 GHz
-60 dB Min @ 13 to 20 GHz |
|---|
| Connectors In/Out: | SMA Female |
|---|

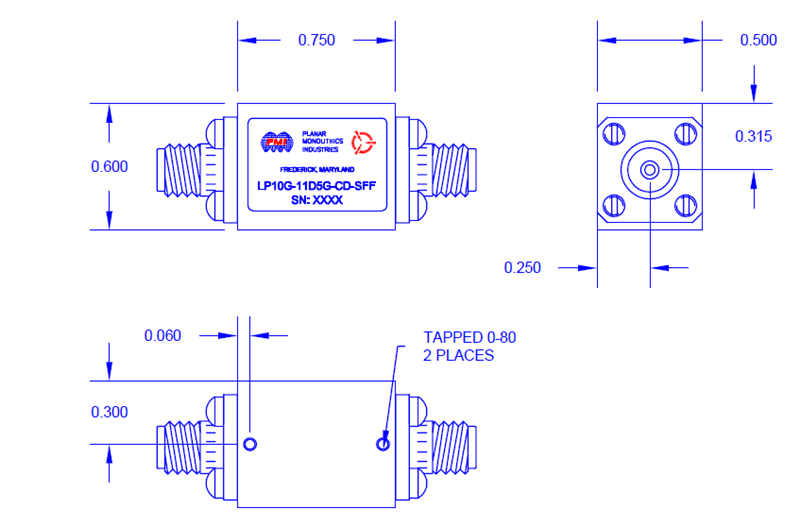

| Size: | 0.75" x 0.50" x 0.60" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 °C to +85 °C |
|---|
| Non-Operating: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Fungus: | MIL-STD-810C, Method 508.2 |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
