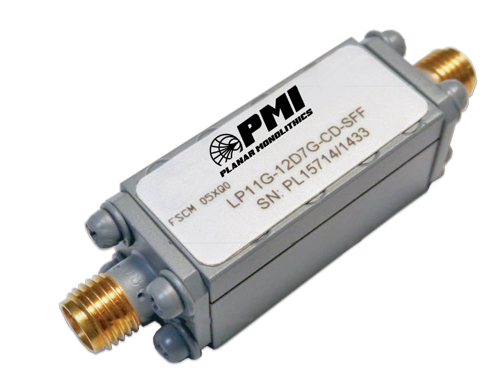

| General Parameters: |
|---|
| Status: | Active |
|---|
| Passband (GHz): | DC to 10 |
|---|
| 3 dB Bandwidth (GHz): | 11 |
|---|
| Cut-Off Frequency (GHz): | 10 |
|---|
| Passband Insertion Loss: | 1.0 dB Max |
|---|
| Passband VSWR: | 1.7:1 Max |
|---|
| Rejection: | 55 dB @ 12.7 to 17.5 GHz |
|---|
| Phase Linearity: | ±1° @ 4.4 to 10 GHz over every 10 MHz |
|---|
| Ripple: | ±0.2 dB Max @ 4.4 to 10 GHz over every 0.01 GHz |
|---|
| Average Power: | 15 W |
|---|
| Impedance: | 50 Ohm |
|---|
| Connectors In/Out: | SMA Female |
|---|
| Size: | 1.094" x 0.5" x 0.5" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 °C to 85 °C |
|---|
| Non-Operating: | -65 °C to 125 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond A |
|---|
| Fungus: | MIL-STD-810C, Method 508.2 |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
