LP2400-3G-MAH-SFF Active
Lowpass Filter
Additional Documents
- Product Feature
- Test Report - 2/2/2016
- PL28751 - Unit Data
- PL28752 - Unit Data
- PL28753 - Unit Data
- PL28754 - Unit Data
- PL28755 - Unit Data
- PL28756 - Unit Data
- PL28757 - Unit Data
- PL28758 - Unit Data
- PL28759 - Unit Data
- PL28760 - Unit Data
- PL28761 - Unit Data
- PL28762 - Unit Data
- PL28763 - Unit Data
- PL28764 - Unit Data
- PL28765 - Unit Data
- PL28766 - Unit Data
- PL28767 - Unit Data
- PL28768 - Unit Data
- PL28769 - Unit Data
- PL28770 - Unit Data
- PL28771 - Unit Data
- PL28772 - Unit Data
- PL28773- Unit Data
- PL28774 - Unit Data
- PL28775 - Unit Data
- PL28776 - Unit Data
- PL28777 - Unit Data
- PL28778 - Unit Data
- PL28779 - Unit Data
- PL28780 - Unit Data
- PL28781 - Unit Data
- PL28782 - Unit Data
- PL28783 - Unit Data
- PL28784 - Unit Data
- PL28785 - Unit Data
- PL28786 - Unit Data
- PL28787 - Unit Data
- PL28788 - Unit Data
- PL28789 - Unit Data
- PL28790 - Unit Data
- PL31698 - Unit Data
- PL31699 - Unit Data
- PL32307 - Unit Data

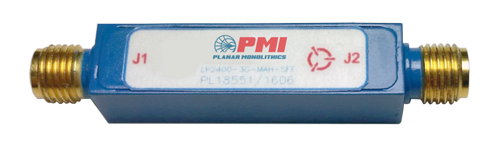

PMI Model LP2400-3G-MAH-SFF is a Lowpass Filter that operates DC to 2.4 GHz that offers extremely high Q with broadband performance and exceptionally low loss. This model is ideal for eliminating broadband harmonics and spurs. Package size is 1.25" x 0.31" x 0.31" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband (GHz): | DC to 2.4 |
| Cut-Off Frequency (GHz): | 2.4 |
| Passband Insertion Loss: | 3.5 dB Typ - Measured 2.1 dB |
| Return Loss: | 10 dB |
| Rejection: | 13 dB Typ @ 3 GHz, 51 dB Typ @ 3.5 GHz, 60 dB Typ @ 3.8 GHz, 40 dB Typ up to 18 GHz |
| Connectors In/Out: | SMA Female |
| Size: | 1.25" x 0.31" x 0.31" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 °C to 70 °C |
| Non-Operating: | -40 °C to 100 °C |
