LP6200M-SM-CD-MLL Active

Lowpass Filter

LP6200M-SM-CD-MLL
Product Feature
Additional Documents

Quantic PMI Model LP6200M-SM-CD-MLL is a lowpass filter that has a passband frequency of DC to 6.2 GHz. Offers very high Q with broadband performance. This unit has very low loss and is ideal for eliminating broadband harmonics. Package size is 1.2" x 0.3" x 0.032".

Product Specifications

General Parameters:
Status: Active
Passband (GHz): DC to 6.2
Cut-Off Frequency (GHz): 6.2
Passband Insertion Loss: 2.25 dB Typ
VSWR: 1.5:1 Typ (In the Passbnad)
Rejection: 60 dB Typ @ 10.6 GHz
65 dB Typ @ 12 GHz
Rejection @ 10.6 GHz: 60 dB Typ
Rejection @ 12 GHz: 65 dB Typ

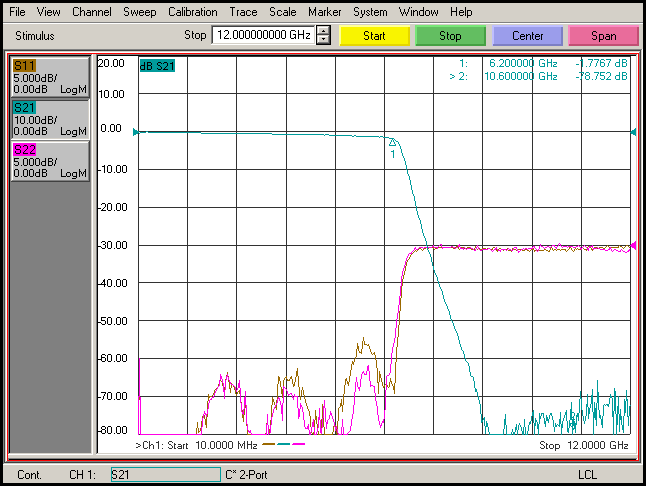

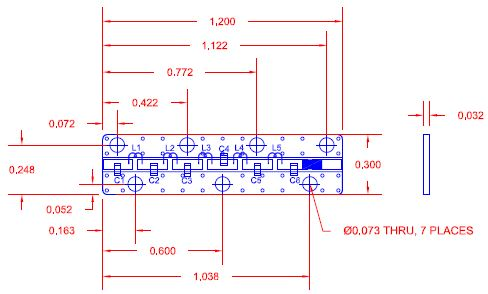

Size: 1.2" x 0.3" x 0.032"
Finish: Backside Copper
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -55 °C to +85 °C
Non-Operating: -65 °C to +125 °C
