LP625-600-3A-SFF Active
Low Pass Filter
Additional Documents
- Product Feature
- Test Report - 3/27/23
- 3D STEP Model
- S-Parameters
- PL40038 - Unit Data
- PL40039 - Unit Data
- PL40040 - Unit Data
- PL40041 - Unit Data
- PL40042 - Unit Data
- PL40043 - Unit Data
- PL40044 - Unit Data
- PL40045 - Unit Data
- PL42751 - Unit Data
- PL42872 - Unit Data
- PL44928 - Unit Data
- PL44929 - Unit Data
- PL44930 - Unit Data
- PL44931 - Unit Data

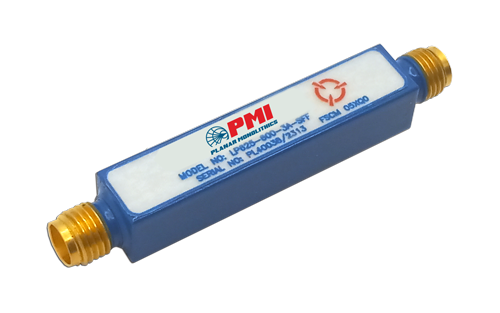

PMI Model LP625-600-3A-SFF is a low pass filter having a passband of DC to 0.6 GHz with a 3 dB bandwidth of 0.625 GHz, a VSWR of 1.5:1 maximum, an insertion loss of 1 dB typical, a rejection @ 1 GHz of 60 dB minimum, and a rejection @ 6 GHz of 60 dB minimum. The package size is 1.5" x 0.31" x 0.31" and has SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband (GHz): | DC to 0.6 |
| 3 dB Bandwidth (GHz): | 0.625 |
| Cut-Off Frequency (GHz): | 0.6 |
| Passband Insertion Loss: | 1 dB Typ, 1.5 dB Max |
| Passband VSWR: | 1.5:1 Max |
| Rejection: | -60 dB Min @ 1 & 6 GHz |
| Connectors In/Out: | SMA Female |
| Size: | 1.5" x 0.31" x 0.31" |
| Weight: | 1 oz Typ |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 °C to 85 °C |
| Non-Operating: | -40 °C to 100 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
