LPF-1285M1505M-SFF Preliminary
Low Pass Filter

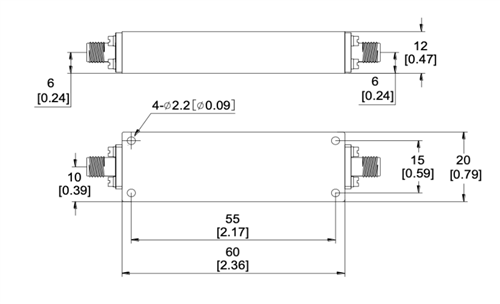

PMI Model LPF-1285M1505M-SFF is a low pass filter with a passband of DC to 1.505 GHz having a cut-off frequency of 1.505 GHz with a 2 dB insertion loss, 1.5:1 VSWR, and 5 W CW power handling. Supplied in a compact package measuring 2.36" x 0.79" x 0.47" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Passband (GHz): | DC to 1.505 |
| Cut-Off Frequency (GHz): | 1.505 |
| Insertion Loss (dB): | 2 dB Max |
| VSWR: | 1.5:1 Max |
| Rejection: | 25 dB Min @ 2.57 to 7.145 GHz 40 dB Min @ 7.445 to 8.43 & 10.235 to 11.22 GHz 70 dB Min @ 8.95 to 9.715 GHz 60 dB Min @ 16.395 to 20 GHz |
| Ripple: | 0.5 dB Max |
| Power Handling: | 5 W CW Max |
| Connectors In/Out: | SMA Female |
| Finish: | Painted Blue |
| Environmental Ratings: | |
| Temperature: | -40 ºC to +85 ºC (Operating) -65 ºC to +125 ºC (Storage) |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
