LPF-300M-PIN
Preliminary
Low Pass Filter
Quantic PMI Model LPF-300M-PIN is a low pass filter having a cut-off frequency of 0.3 GHz with an insertion loss <1 dB. Supplied in a compact package measuring 0.99" x 0.36" x 0.28" with input and output pins.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Passband (GHz): | DC to 0.3 |
|---|
| Insertion Loss (dB): | 1 dB Max |
|---|
| VSWR: | 1.5:1 Max |
|---|
| Rejection: | 60 dBc Min @ 0.4 to 6 GHz |
|---|
| Connectors In/Out: | Pins |
|---|

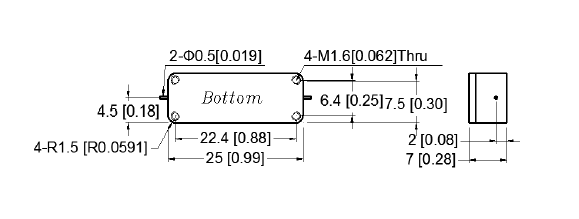

| Size: | 0.99" x 0.36" x 0.28" |
|---|
| Finish: | Silver Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 to +70 °C |
|---|
