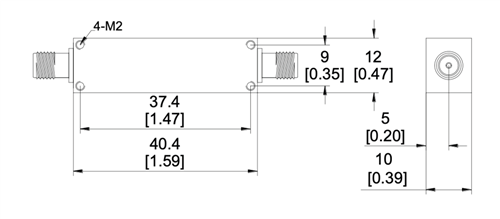

LPF-DC2G-10W-SFF Preliminary
Low Pass Filter
PMI Model LPF-DC2G-10W-SFF is a DC to 2 GHz low pass filter featuring 10 W CW power handling, 3 dB insertion loss, and 1.5:1 VSWR.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Passband (GHz): | DC to 2 |
| Cut-Off Frequency (GHz): | 2 |
| Insertion Loss (dB): | 3 Max |
| VSWR: | 1.5:1 Max |
| Input Power: | 10 W CW Max |
| Rejection: | 20 dB Min @ 2.1 to 4 GHz |
| Connectors In/Out: | SMA Female |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 °C to +70 °C |
| Non-Operating: | -55 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
