LPF-DC50M-SFF Preliminary

Low Pass Filter

LPF-DC50M-SFF

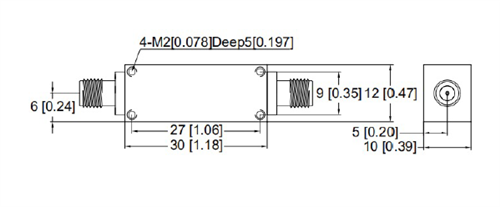

PMI Model LPF-DC50M-SFF is a low pass filter with a cutoff frequency of 0.05 GHz that offers 1.4 dB insertion loss, 1.5:1 VSWR, and 30 dBm CW power handling. Package size is 1.18" x 0.47" x 0.37" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Passband (GHz): DC to 0.05
Cut-Off Frequency (GHz): 0.05
Insertion Loss (dB): 1.4 dB Max
VSWR: 1.5:1 Max
Input Power: 1 W Max
Rejection: 20 dB Min @ 79 MHz
Connectors In/Out: SMA Female
Finish: Painted Blue
Environmental Ratings:
Temperature: -40 ˚C to +70 ˚C (Operating)
-65 ˚C to +125 ˚C (Storage)
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
