LPF-DC880M-1W-SFF Preliminary
Low Pass Filter
PMI Model LPF-DC880M-1W-SFF is a DC to 0.88 GHz low pass filter featuring 1 W CW power handling, 15 dB return loss, and 2 dB insertion loss. Housing size is 1.18" x 0.47" x 0.39" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Passband (GHz): | DC to 0.88 |
| Cut-Off Frequency (GHz): | 0.88 |
| Insertion Loss (dB): | 2 dB Max |
| Return Loss: | 15 dB Min |
| Input Power: | 1 W CW Max |
| Rejection: | 30 dB Min @ 0.925 to 0.960 GHz |
| Connectors In/Out: | SMA Feamle |

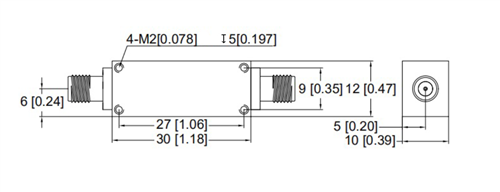

| Size: | 1.18" x 0.47" x 0.39" |
| Finish: | Silver Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 ˚C to +70 ˚C |
| Non-Operating: | -55 ˚C to +125 ˚C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
