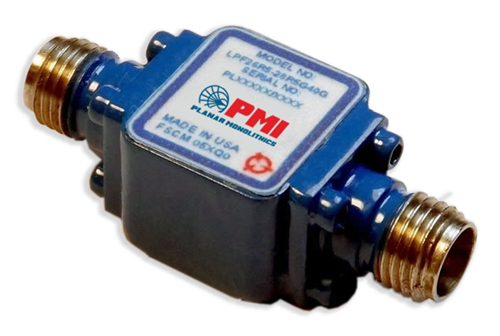

LPF26R5-28R5G40G

PMI Model No. LPF26R5-28R5G40G is an ultra-small low pass filter with a passband frequency range of DC to 26.5 GHz and greater than 25 dB rejection from 28.5 to 40.0 GHz.

Product Specifications

General Parameters:
Status: Active
Passband: DC to 26.5 GHz
Passband Insertion Loss: 1.5 dB Max - Measured 1.2 dB
Rejection @ 140 MHz: 25 dB (28.5 to 40 GHz) - Measured 28 dB
Ripple: ± 0.75 dB Max - Measured ±0.4 dB
Passband VSWR: 2.2:1 Max - Measured 2.1:1
Connectors In/Out: 2.92mm (F)
Size: 0.45" x 0.38" x 0.50"
Weight: 0.5 oz Typ
Finish: Painted Blue
Environmental Ratings:
Temperature: -40 to 85 Degree C
Non-Operating: -65 to 125 Degree C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D
