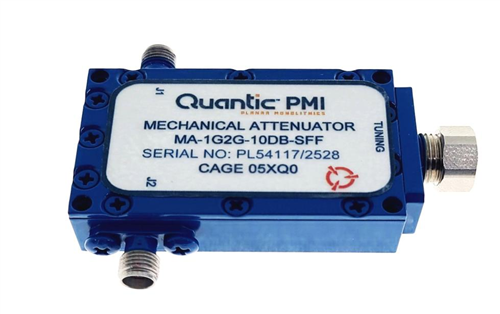

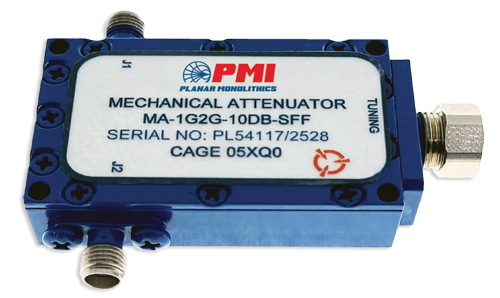

MA-1G2G-10DB-SFF Active

Mechanical Attenuator

MA-1G2G-10DB-SFF
Product Feature

PMI Model MA-1G2G-10DB-SFF is a 1 to 2 GHz mechanical attenuator featuring 0 to 10 dB attenuation, 1.9:1 maximum VSWR, and 0.5 dB maximum insertion loss.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 2
Frequency Min (GHz): 1
Frequency Max (GHz): 2
Attenuation (dB): 0 to 10
Insertion Loss (dB): 0.5 Max
VSWR: 1.8:1 Max @ 25 °C
1.9:1 Max (Over Temperature)
Adjustment Method: Screwdriver and shaft lock
Connectors: SMA (F)
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -54 ˚C to +55 ˚C
Temperature (Storage): -57 ˚C to +85 ˚C
Operating Humidity: 5 to 95%
Shock: 15 g, 11 ms (6-Axis)
Vibration: MIL-E-5400T Figure 2 Curve II (2 g)
Altitude: 30, 000 ft. Max
