| General Parameters: |
|---|
| Status: | Active |
|---|

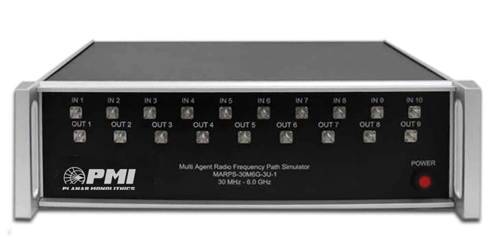

| Product Description: | PMI Model MARPS-30M6G-3U-1 is a Multiagent Radio Frequency Path Simulator consisting of an integrated amplified attenuator assembly and an 8-Way Amplified Power Divider that operate over the 0.03 to 6 GHz frequency range in order to simulate field testing in a reduced, controlled lab environment. |
|---|
| Item No.: | 61 |
|---|
| Insertion Loss: | -4 dB Min, -4.5 dB Min Measured
-8 dB Max, -7.4 dB Max Measured |
|---|
| Gain (Input 9 to Output 1): | -5 dB Min, -2.6 dB Min Measured
0 dB Nom, 0.5 dB Nom Measured
5 dB Max, 3.7 dB Max Measured |
|---|
| External +5 VDC Supply Via 78-Pin Connectors: | +5 VDC @ 8 A |
|---|
| Gain (Inputs 1 Thru 8 to Output 1): | 4 dB Min, 6.1 dB Min Measured
10 dB Nom, 8.06 dB Min Measured
12 dB Max, 10.06 dB Max Measured |
|---|
| Switching Speed: | 50 µs Max, 29.5 µs Measured |
|---|
Insertion Loss
(Input 10 to Outputs 2 Thru 9): | -4 dB Min, -4.5 dB Min Measured
-8 dB Max, -7.4 dB Max Measured |
|---|
Isolation
(Between Inputs 1 Thru 9): | -29 dB Min
-36 dB Nom, -32.03 dB Measured |
|---|
Isolation
(Output 1 to Inputs 1 Thru 8): | -100 dB Min,
-104 dB Nom, -105 dB Measured |
|---|
Isolation
(Output 1 to Input 9): | -48 dB Typ, -72 dB Min Measured |
|---|
Isolation
(Outputs 2 Thru 9 to Input 10): | -32 dB Min
-36 dB Nom, -42 dB Measured |
|---|
Attenuation Range
(Inputs 1 Thru 8 to Output 1): | 127.5 dB, 124.3 dB Measured |
|---|
Attenuation Flatness
(Inputs 1 Thru 8 to Output 1): | ±1 dB @ 10 dB, ±0.5 dB Measured,
±1.5 dB @ 20 dB, ±0.6 dB Measured
±3 dB @ 40 dB, ±1 dB Measured
±5 dB @ 60 dB, ±2.3 dB Measured |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | 0 ºC to +75 ºC (Operating) -50 ºC to +100 ºC (Storage) |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
