P10T-9K3G-35-R-SFF-IND Preliminary
High-Speed SP10T Reflective Switch

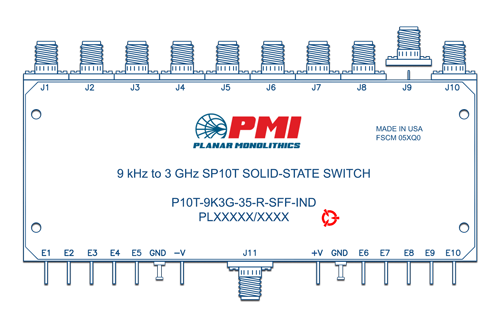

PMI Model P10T-9K3G-35-R-SFF-IND is a single pole ten throw reflective switch that covers 9 kHz to 3 GHz. with 5.5 dB insertion loss, over 35 dB of isolation and a VSWR of 2.0:1 with an impedance of 50 Ω. This unit is supplied with SMA female connectors in a housing measuring 5.0" x 2.0" x 0.4".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP10T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 0.000009 to 3 |
| Frequency Min (GHz): | 0.000009 |
| Frequency Max (GHz): | 3 |
| Insertion Loss (dB): | 5.5 dB Typ |
| Insertion Loss - Typ (dB): | 5.5 dB |
| Isolation (dB): | 35 dB Min |
| Switching Speed: | 50% TTL to 10% / 90% RF, 1 µs goal |
| Switching Speed - Typ: | 1 µs |
| Input Power: | 20 dBm CW (Operating) |
| Impedance: | 50 Ohms |
| Power Supply: | +5 VDC @ 50 mA Typ, -5 VDC @ 125 mA Typ |
| Control Signal: | Individual Control - 10 Lines, TTL Logic "0" = Low Loss All Pins Pulled High |
| Connectors: | SMA Female - removable |

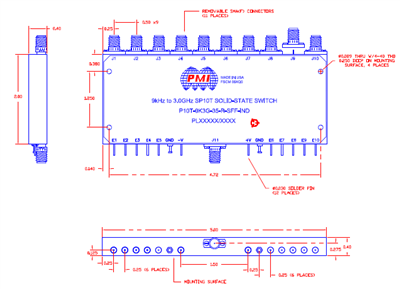

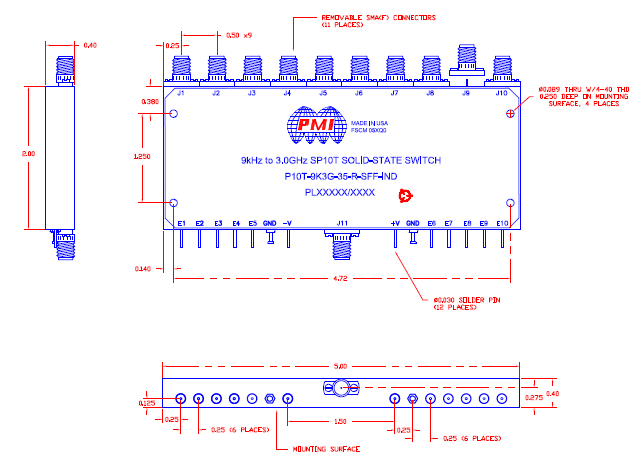

| Size: | 5.0" x 2.0" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -30 ºC to +85 ºC |
| Temperature (Non-Operating): | -55 ºC to +100 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
