P128T-2G6G-55-R-SFF-115VAC Preliminary
Reflective, SP128T, Solid State Switch

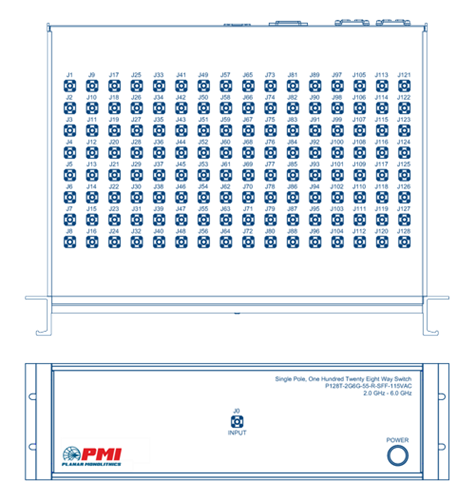

PMI Model P128T-2G6G-55-R-SFF-115VAC is a reflective, single pole one-hundred-twenty-eight-way, solid state switch that operates at a frequency range of 2 to 6 GHz with a 10 dB insertion loss maximum and 55 dB isolation minimum. Operates using a 115 VAC power source. This model is a standard 19 in rack mountable that measures 18.99" x 14.01" x 5.22" with 9 Pin Sub D Male connectors (Mating Connector To Be Supplied With Unit) on rear panel that is used for power/control with SMA female connectors for RF ports.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP128T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 2 to 6 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 6 |
| Insertion Loss (dB): | 10 dB Max |
| Isolation (dB): | 55 dB Min |
| Switching Speed: | 500 ns Max |
| Control: | TTL |
| Input Power: | 20 dBm CW Max Operating |
| Power Supply: | 115 VAC, 60 Hz |
| Power & Control: | 9 Pin Sub D Male, (Mating Connector To Be Supplied With Unit) |
| Connectors: | SMA Female |
| Size: | 18.99" x 14.01" x 5.22" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 ºC |
| Temperature (Non-Operating): | -65 °C to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
