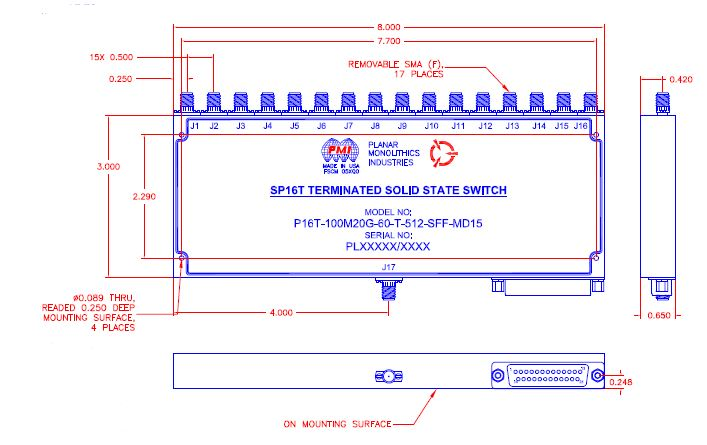

P16T-100M20G-60-T-512-SFF-MD15 Preliminary
SP16T Absorptive Switch
Quantic PMI Model P16T-100M20G-60-T-512-SFF-MD15 is a single pole, sixteen throw, absorptive pin diode switch that operates from 0.1 to 20.0 GHz. This model has a typical insertion loss of 8.5 dB and 60 dB of isolation. It operates at 20 dBm CW and is controlled with 4-Bit decoded TTL logic.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP16T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.1 to 20.0 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 20 |
| Insertion Loss (dB): | 8.5 dB Typ |
| Isolation (dB): | 60 dB Typ |
| Switching Speed: | 50 ns Typ (Rise/Fall) 150 ns Max (Delay On/Off) |
| Rise/Fall Time: | 50 ns Typ |
| Delay On/Off: | 150 ns Max |
| VSWR In/Out: | 2.0:1 Typ / 2.5:1 Max |
| Input Power: | 20 dBm CW |
| Survival Power: | 1 W CW, 10 Watts Peak, 1 µs |
| Power Supply: | +5 VDC @ 750 mA Max, -12 VDC @ 200 mA Max |
| Control Signal: | TTL Logic |
| Connectors: | SMA Female - removable, Sub-D Connector |
| Size: | 8.0" x 3.0" x 0.65" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 Cond. A |
