P16T-100M27G-100-T-DEC Active
SP16T Solid State Absorptive Switch

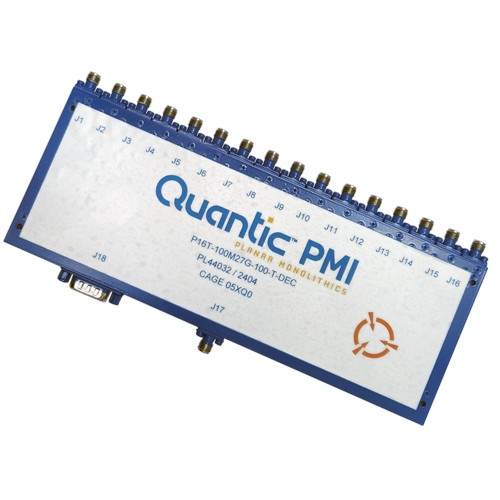

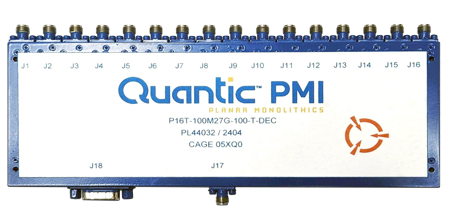

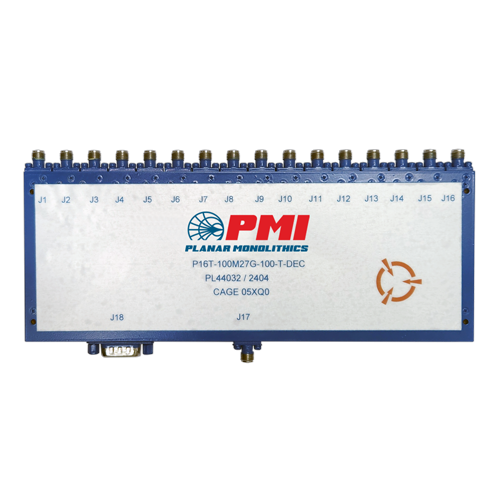

PMI Model P16T-100M27G-100-T-DEC is a single pole, 16 throw, solid state, absorptive switch operating over the 0.1 to 27 GHz frequency range. This model offers a maximum insertion loss of 10 dB while maintaining a minimum isolation of 70 dB. Housing size of 8.0" x 3.0" x 0.67" with a 9 pin Micro-D connector for power/control and has 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.1 to 27 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 27 |
| Insertion Loss (dB): | 8.0 dB Max (0.1 to 18 GHz), 10 dB Max (18 to 27 GHz) |
| Isolation (dB): | 70 dB Min (0.1 to 1 GHz), 90 dB Min (1 to 18 GHz), 80 dB Min (18 to 27 GHz) |
| Switching Speed: | 100 ns Max |
| VSWR In/Out: | 2.5:1 Max (0.1 to 18 GHz), 3.0:1 Max (18 to 27 GHz) |
| Input Power: | 20 dBm CW Max |
| Control Signal: | TTL Logic - See Product Feature |
| Power / Control Connector: | 9 Pin Micro-D |
| Connectors: | 2.92mm Female |
| Size: | 8.0" x 3.0" x 0.67" |
| Finish: | Painted Blue Mounting Surface Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
