P16T-100M40-100-T-DEC Preliminary
SP16T Absorptive Switch
Quantic PMI Model P16T-100M40-100-T-DEC is a 0.1 to 40 GHz, SP16T Absorptive Switch. This model offers a typical insertion loss of 12.5 dB while maintaining a typical isolation of 70 dB.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP16T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.1 to 40 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 8.0 dB Typ (0.1 to 18 GHz) 12.5 dB Typ (18 to 40 GHz) |
| Isolation (dB): | 70 dB Typ (0.1 to 1.0 GHz) 90 dB Typ (1.0 to 18 GHz) 80 dB Typ (18 to 40 GHz) |
| Switching Speed: | 100 ns Max |
| VSWR In/Out: | 2.5:1 Typ (0.1 to 18 GHz) 3.0:1 Typ (18 to 40 GHz) |
| Input Power: | 20 dBm CW Max |
| Power Supply: | +12 VDC @ 1.1 A Max -12 VDC @ 720 mA Max |
| Control Signal: | TTL Logic |
| Connectors: | 2.92mm Female |

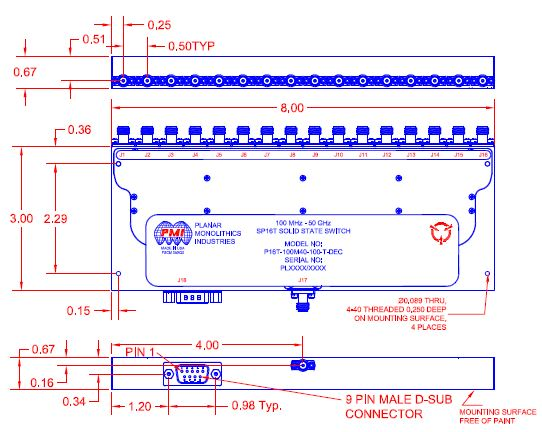

| Size: | 8.0” x 3.0” x 0.67” |
| Finish: | Painted Blue (Mounting Surface Free of Paint) |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
