P1T-0R1G2R5G-80-T-SFF-F192A
Preliminary
SPST, High Speed, Absorptive Switch
Quantic PMI Model P1T-0R1G2R5G-80-T-SFF-F192A is a high speed, single pole, single throw, absorptive switch capable of switching with in 30 ns that operates over the frequency range of 0.1 to 2.5 GHz and has over 70 dB of isolation. Housing size is 1.0" x 1.0" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SPST |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | 0.1 to 2.5 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 2.5 |
|---|
| Insertion Loss (dB): | 3.5 dB Max |
|---|
| Isolation (dB): | 70 dB Min |
|---|
| Switching Speed: | 10 ns (Rise/Fall) |
|---|
| VSWR In/Out: | 2.0:1 Max |
|---|
| Input Power: | 1 W (30 dBm) |
|---|
| Control Signal: | TTL Logic "0" = On,
TTL Logic "1" = Off |
|---|
| Power Supply: | +5 VDC @ 50 mA Max,
-12 VDC @ 75 mA Max |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female |
|---|

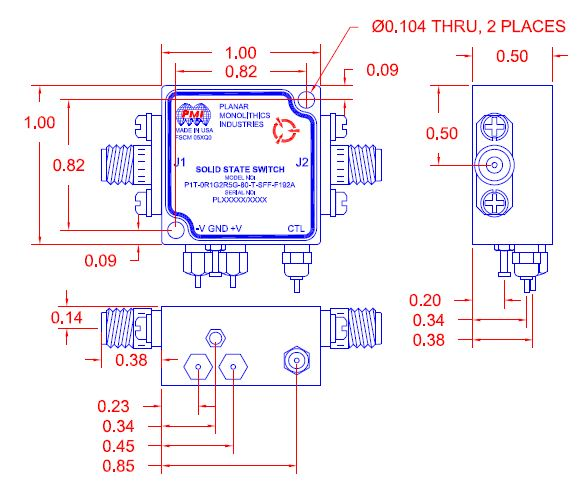

| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -65 to +110 ºC |
|---|
| Temperature (Storage): | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
