General Parameters: |
Status: | Preliminary |
Frequency Min: | 1.0 GHz |
Frequency Max: | 6.0 GHz |
Reflective / Absorptive: | Absorptive |
Switching Speed (Typ): | 100 ns |
Configuration: | SPST |
Frequency: | 1.0 to 6.0 GHz |
Isolation: | 60dB min. (1.0 - 2.0GHz) and 70dB min. (2.0-6.0GHz) |
Insertion Loss: | 3.5dB max |
VSWR In/Out: | 2.0:1 max. |
Input Power: | +20dBm CW |
Rise/Fall Time: | 10ns typ., 15ns max. |
Delay On/Off: | 75ns typ., 100ns max. |
Control Signal: | Single Line TTL, - TTL "0" = On, - TTL "1" = Off |
Power Supply: | +5VDC @ 70mA, -5VDC @ 100mA |
Connectors: | SMA(F) |

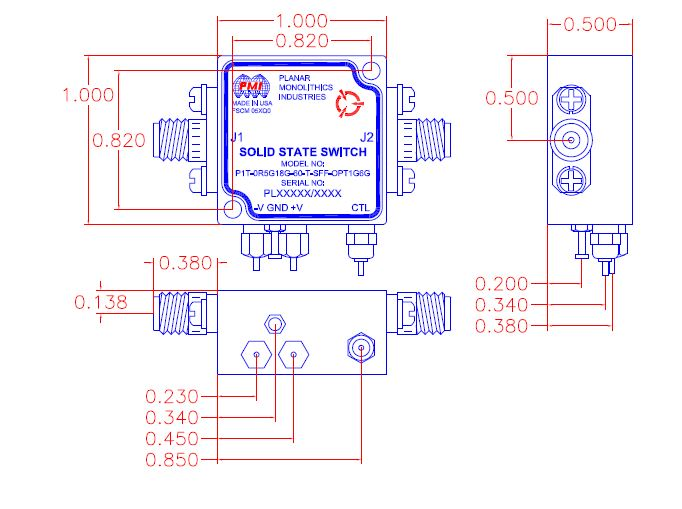

Size: | 1.0" x 1.0" x 0.5" |
Finish: | Gold |
Features: | Low Insertion Loss, High isolation, Fast Switching Speed, Small Size |
Environmental Ratings: |
Temperature (Operating): | -54 to +95 ºC |
Temperature (Storage): | -65ºC to +125ºC |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
