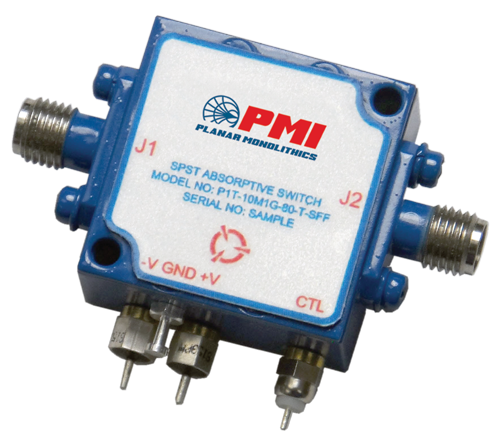

P1T-10M1G-80-T-SFF * Active
SPST, High Speed, Absorptive Switch
Buy Now
PMI Model P1T-10M1G-80-T-SFF is an Absorptive, High Speed, Single Pole Single Throw Switch capable of switching within 200 ns maximum that has a frequency range of 0.01 to 1 GHz with 80 dB isolation. Housing size is 1.0" x 1.0" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SPST |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 0.01 to 1 |
| Frequency Min (GHz): | 0.01 |
| Frequency Max (GHz): | 1 |
| Insertion Loss - Typ (dB): | 1.3 dB |
| Insertion Loss (dB): | 1.3 dB Max |
| Isolation (dB): | 80 dB Typ |
| Isolation - Typ (dB): | 80 dB |
| Switching Speed: | 200 ns Max |
| Switching Speed - Typ: | 200 ns |
| VSWR In/Out: | 1.5:1 Typ - Measured 1.53:1 |
| Input Power: | 30 dBm Max (Survival), 20 dBm Max (Operating) |
| Impedance: | 50 Ohm |
| Control Signal: | TTL Compatible, "0" = Insertion Loss, "1" = Isolation |
| Power Supply: | +5 VDC, 20 mA Typ - Measured 23 mA, -15 VDC, 40 mA Typ - Measured 73 mA |
| Power & Control Connector: | Feedthrus |
| Connectors: | SMA Female |
| Size: | 1.0" x 1.0" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond B |
| Shock: | MIL-STD-202F, Method 213B Cond B |
| Vibration: | MIL-STD-202F, Method 204D Cond B |
| Altitude: | MIL-STD-202F, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
