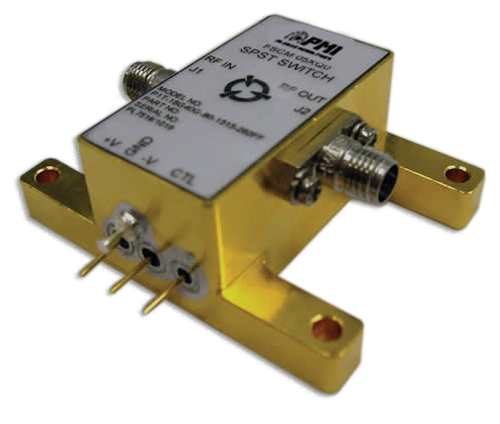

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SPST |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | 18 to 40 |
|---|
| Frequency Min (GHz): | 18 |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Insertion Loss - Typ (dB): | 5 dB |
|---|
| Insertion Loss (dB): | 5 dB Max |
|---|
| Isolation (dB): | 90 dB Min |
|---|
| Isolation - Typ (dB): | 90 dB |
|---|
| Switching Speed: | 25 ns Max, 15 ns Typ |
|---|
| Switching Speed - Typ: | 25 ns |
|---|
| VSWR In/Out: | 2.0:1 Max - Measured 1.66:1 |
|---|
| Input Power: | 23 dBm CW Max |
|---|
| Control Signal: | 0 VDC "Low Loss", 5 VDC "Isolation" |
|---|
| Features: | Low Insertion Loss, High isolation, Fast Switching Speed, Small Size |
|---|
| Power Supply: | +15 VDC @ 100 mA - Measured 64 mA,
-+15 VDC @ 100 mA - Measured 43 mA |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | 2.92mm Female |
|---|
| Size: | 1.75" x 1.25" x 0.75" |
|---|
| Finish: | Painted Gray |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +85 ºC |
|---|
| Temperature (Storage): | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
