P1T-1G18G-65-R-SFF-OPT26 Preliminary

High Speed Reflective SPST Switch

P1T-1G18G-65-R-SFF-OPT26
Product Feature

Quantic PMI Model P1T-1G18G-65-R-SFF-OPT26 is a Reflective, High Speed, Single Pole Single Throw Switch capable of switching within 50 ns Maximum that has a frequency range of 2 to 6 GHz with a 65 dB isolation. Housing size is 1.0" x 1.0" x 0.5" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Configuration: SPST
Reflective / Absorptive: Reflective
Frequency Range (GHz): 2 to 6
Frequency Min (GHz): 2
Frequency Max (GHz): 6
Insertion Loss - Typ (dB): 1 dB
Insertion Loss (dB): 1 dB Max
Isolation (dB): 65 dB Min
Isolation - Typ (dB): 65 dB
Switching Speed: 50 ns Max
Switching Speed - Typ: 50 ns
VSWR In/Out: 2.0:1 Max
Input Power: 20 dBm Max
Survival Power: 30 dBm Max
Impedance: 50 Ohm
Control Signal: TTL Compatible
Connectors: SMA Female

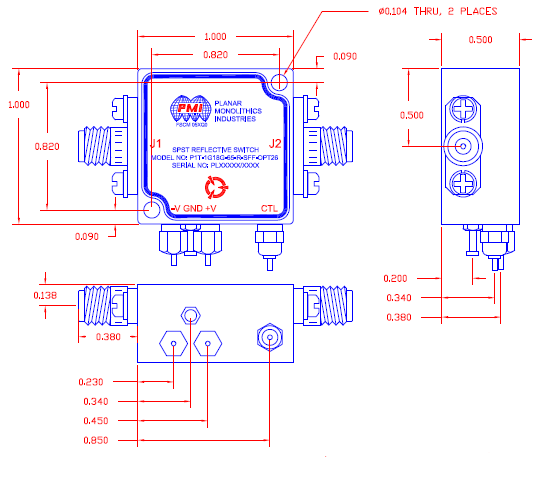

Size: 1.0" x 1.0" x 0.5"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond B
Shock: MIL-STD-202F, Method 213B Cond B
Vibration: MIL-STD-202F, Method 204D Cond B
Altitude: MIL-STD-202F, Method 105C Cond B
Temperature Cycle: MIL-STD-202F, Method 107D Cond A
