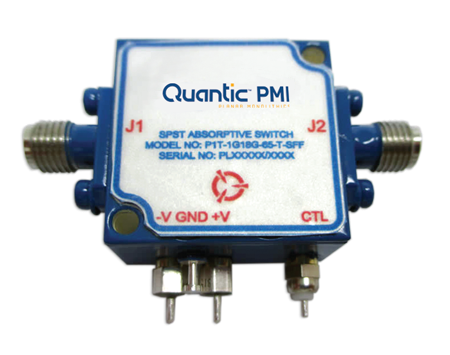

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Min: | 1 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| Insertion Loss (Typ): | 3 dB |
|---|
| Isolation (Typ): | 65 dB |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Switching Speed (Typ): | 50 ns |
|---|
| Configuration: | SPST |
|---|
| Frequency: | 1.0 to 18.0 GHz |
|---|
| Isolation: | 65 dB Min - Measured 81.0 dB |
|---|
| Insertion Loss: | 3 dB Max - Measured 2.88 dB |
|---|
| VSWR In/Out: | 2.0:1 Max - Measured 1.75:1 |
|---|
| Input Power: | +30 dBm Max (Survival),
+20 dBm Max (Operating) |
|---|
| Switching Speed: | 50 ns Max - Measured 49.6 ns |
|---|
| Impedance: | 50 Ohm |
|---|
| Control Signal: | Solder Pin, TTL Compatible,
"0" = Insertion Loss,
"1" = Isolation |
|---|
| Power Supply: | +5 VDC, 20 mA Typ - Measured 22 mA,
-15 VDC, 40 mA typ - Measured 57 mA |
|---|
| Connectors: | SMA (F) |
|---|
| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
|---|
