P1T-1G18G-75-T-SFF Preliminary
Absorptive, High Speed, SPST Switch
Quantic PMI Model P1T-1G18G-75-T-SFF is an absorptive, high speed, single pole, single throw switch capable of switching within 50 ns maximum over the frequency range of 1 to 18 GHz that has >75 dB isolation. Housing size is 1.0" x 1.0" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SPST |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 1 to 18 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3 dB Max |
| Isolation (dB): | 75 dB Min |
| Switching Speed: | 50 ns Max |
| Input Power: | 30 dBm Max (Survival), 20 dBm Max (Operating) |
| Impedance: | 50 Ohm |
| Control Signal: | TTL Compatible "0" = Insertion Loss "1" = Isolation |
| Power Supply: | +5 VDC @ 20 mA Typ -15 VDC @ 20 mA Typ |
| Input VSWR: | 1.8:1 Max |
| Power & Control Connector: | Feedthrus |
| Connectors: | SMA Female |

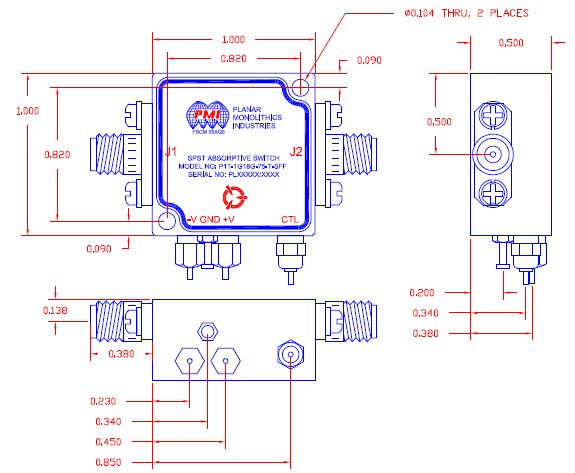

| Size: | 1.0" x 1.0" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
