P1T-200M18G-80-T-SFF-F192A-OPT56
Preliminary
Reflective, High Speed, SPST Switch
Quantic PMI Model P1T-200M18G-80-T-SFF-F192A-OPT56 is a high speed, single pole, single throw, absorptive switch capable of switching within 30 ns with a frequency range is 5.3 to 5.9 GHz and offers over 80 dB of isolation. Housing size is 1.0" x 1.0" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SPST |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | 5.3 to 5.9 |
|---|
| Frequency Min (GHz): | 5.3 |
|---|
| Frequency Max (GHz): | 5.9 |
|---|
| Insertion Loss (dB): | 1.5 dB Max |
|---|
| Isolation (dB): | 80 dB Min |
|---|
| Switching Speed: | 10 ns (RISE / FALL) |
|---|
| VSWR In/Out: | 2.0:1 Max |
|---|
| P1dB: | 25 dBm |
|---|
| Input Power: | 27 dBm "Hot Switching" Max |
|---|
| Control Logic: | TTL LOGIC "O" = ON
TTL LOGIC "1" = OFF |
|---|
| Power Supply: | +5 VDC @ 50 mA Max
-12 VDC @ 75 mA Max |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female |
|---|

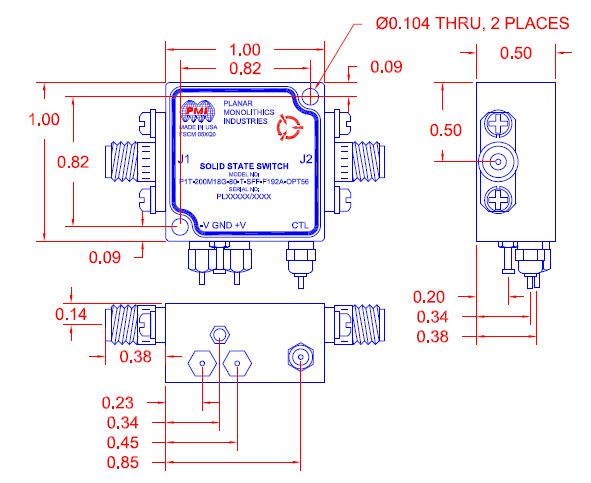

| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -65 °C to +110 °C |
|---|
| Temperature (Storage): | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
