P1T-218-60-515-R-SFF

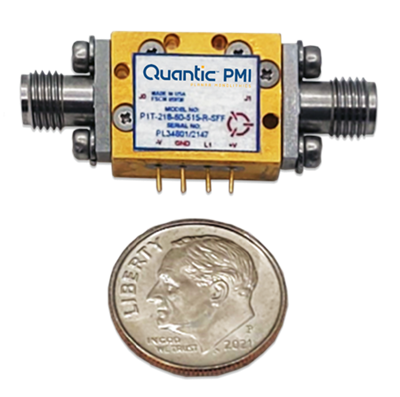

PMI Model no. P1T-218-60-515-R-SFF is a single pole, single throw, reflective switch operating over the frequency range of 2.0 to 18.0 GHz. It has a minimum isolation of 60 dB and a maximum insertion loss of 1.8 dB. This model is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min: 2.0 GHz
Frequency Max: 18.0 GHz
Reflective / Absorptive: Reflective
Isolation: 60 dB MIN
Insertion Loss: 1.8 dB MIN
VSWR In/Out: 1.9:1 MAX
Input Power: 1W CW / 2W Peak MAX
Impedance: 50 OHMs
Connectors: SMA Female
Finish: Gold Plated
Interface: TTL (1: OFF, 0: ON)
Switching Time: 30 ns MAX
RF Input Power: 1W CW / 2W Peak MAX
Supply Voltages: +5 V
-15 V
Supply Current: +65 mA MAX
-65 mA MAX
Corrosion: RESISTANT AGAINST SEAWATER
MTBF: 200,000 hr
EMC: No radiation
Environmental Ratings:
Temperature (Operating): -30 °C TO +95 °C
Temperature (Storage): -55 °C TO +125 °C
Humidity: 90%
Vibration: RANDOM: 20 - 500 Hz
SPECTRAL DENSITY: 0.01g2/Hz
RMS: 2.2 g
Mechanical Shock: PEAK: 100 g
DURATION: 4 ms, HALFSINE
Pressure: OPERATION: 0.6 - 1.4 BAR
STORAGE: 0.3 - 1.4 BAR
VARIATION: ±0.5 BAR
