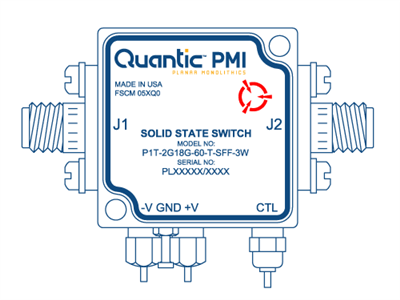

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SPST |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | 2 to 18 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss - Typ (dB): | 1 dB |
|---|
| Insertion Loss (dB): | 1 dB Typ,
2.5 dB Max |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Isolation - Typ (dB): | 60 dB |
|---|
| Switching Speed: | 25 ns Max (50% TTL to 10.90% RF) |
|---|
| Switching Speed - Typ: | 25 ns |
|---|
| VSWR In/Out: | 2.0:1 Max |
|---|
| Input Power: | 3 W Peak 2% Duty Cycle, 50 ns PW |
|---|
| Control Signal: | TTL Logic, "0" = On, "1" = Off |
|---|
| Power Supply: | +15 VDC @ 50 mA Max,
-15 VDC @ 75 mA Max |
|---|
| Power & Control Connector: | Feedthrus |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -20 °C to +75 °C |
|---|
| Temperature (Storage): | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
