P1T-2G4G-55-R-SFF Preliminary

SPST Reflective Switch

P1T-2G4G-55-R-SFF
Product Feature

Quantic PMI Model P1T-2G4G-55-R-SFF is a reflective single pole, single throw switch that operates over the 2 to 4 GHz frequency range that offers a minimum isolation of 55 dB and a maximum insertion loss of 1.1 dB. The compact 0.9" x 0.7" x 0.38" housing is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Configuration: SPST
Reflective / Absorptive: Reflective
Frequency Range (GHz): 2 to 4
Frequency Min (GHz): 2
Frequency Max (GHz): 4
Insertion Loss - Typ (dB): 1.1 dB
Insertion Loss (dB): 1.1 dB Max
Isolation (dB): 55 dB Max
Isolation - Typ (dB): 55 dB
Switching Speed: 25 ns Max (50% TTL to 90% RF),
10 ns Max (10% RF to 90% RF)
Switching Speed - Typ: 25 ns
VSWR In/Out: 1.5:1 Max
Input Power: 20 dBm CW Max
Control Signal: TTL Level
Power Supply: +5 VDC ± 5% @ 70 mA Max,
-15 VDC ± 5% @ 45 mA Max
Power & Control Connector: Solder Pins
Connectors: SMA Female

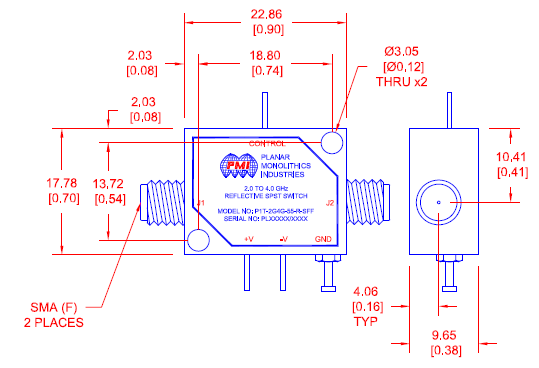

Size: 0.90" x 0.70" x 0.38"
Weight: 60 g [2.1 oz] Max
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -30 ºC to +85 ºC
Temperature (Storage): -54 ºC to +85 ºC
Humidity: 100% Relative Humidity
Shock: 15 G, 11±1 ms
Vibration: 2 to 16 Hz, 20 mm Double Amplitude
Altitude: 0 to 5, 000 FT
