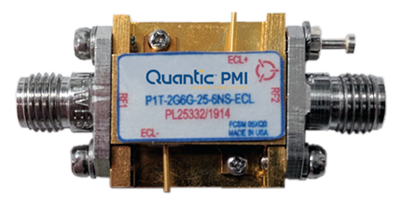

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SPST |
|---|
| Frequency Range (GHz): | 2 to 6 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 6 |
|---|
| Insertion Loss (dB): | 5 dB Max |
|---|
| Isolation (dB): | 25 dB Min |
|---|
| Switching Speed: | 6 ns Typ |
|---|
| VSWR In/Out: | 2:1 Max |
|---|
| Control Signal: | ECL Control
ECL+ "1", ECL- "0" Insertion Loss
ECL+ "0", ECL- "1" Isolation |
|---|
| Recommended Driver Circuit: | MC10ELT24DG or Equivalent ECL Driver with 50 Ohm Terminations to -2 V on ECL+ and ECL-, Keep Connections to Switch Short |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female - removable |
|---|
| Size: | 0.69" x 0.70" x 0.29" (Excluding Connectors) |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 °C to +85 °C |
|---|
| Temperature (Storage): | -40 °C to +85 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
