P1T-500M18G-80-R-SFF-SW21841A Active
SPST Reflective Switch
Additional Documents
- Product Feature
- Test Report - 3/25/2017
- PL20654 - Unit Data
- PL20655 - Unit Data
- PL20656 - Unit Data
- PL20657 - Unit Data
- PL28130 - Unit Data
- PL28131 - Unit Data
- PL28132 - Unit Data
- PL28133 - Unit Data
- PL28134 - Unit Data
- PL29582 - Unit Data
- PL29937 - Unit Data
- PL29938 - Unit Data
- PL29939 - Unit Data
- PL29940 - Unit Data
- PL29940-1 - Unit Data
- PL29941 - Unit Data
- PL29942 - Unit Data
- PL33690 - Unit Data
- PL33691 - Unit Data
- PL36135 - Unit Data
- PL36136 - Unit Data

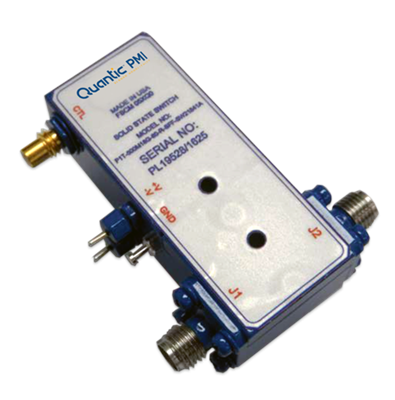

Quantic PMI Model P1T-500M18G-80-R-SFF-SW21841A is a 0.5 to 18 GHz Single Pole, Single Throw, Reflective Switch that offers a Maximum insertion loss of 2.5 dB with a Maximum VSWR of 1.9:1 and a minimum isolation of 80 dB. Housing measures 0.792" x 1.97" x 0.53" and has SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SPST |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss - Typ (dB): | 1 dB |
| Insertion Loss (dB): | 1 dB Max (0.5 to 2 GHz), 1.2 dB Max (2 to 4 GHz), 1.5 dB Max (4 to 8 GHz), 2 dB (8 to 12.4 GHz), 2.5 dB (12.4 to 18 GHz) |
| Isolation (dB): | 45 dB Min (0.5 to 1 GHz), 70 dB Min (1 to 2 GHz), 85 dB Min (2 to 12.4 GHz), 80 dB Min (12.4 to 18 GHz) |
| Isolation - Typ (dB): | 45 dB |
| Switching Speed - Typ: | 2 ns |
| VSWR In/Out: | 1.4:1 Max (0.5 to 4 GHz), 1.6:1 Max (4 to 8 GHz), 1.9:1 Max (8 to 18 GHz) |
| Input Power: | 2 W Average, 10 W Peak @ 1 µs PW |
| Rise/Fall Time: | 2 ns Max - Measured 2 ns |
| Delay On/Off: | 20 ns Max - Measured 19.6 ns |
| Control Signal: | TTL, "0" = Isolation, "1" = Insertion Loss |
| Power Supply: | +15 VDC @ 100 mA - Measured 42 mA, -15 VDC @ 45 mA - Measured 29 mA |
| Power & Control Connector: | SMC Male |
| Connectors: | SMA Female |
| Size: | 1.97" x 0.792" x 0.53" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
