| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SPST |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Frequency Range (GHz): | 0.5 to 18 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss - Typ (dB): | 1 dB |
|---|
| Insertion Loss (dB): | 1 dB Max (0.5 to 2 GHz),
1.2 dB Max (2 to 4 GHz),
1.5 dB Max (4 to 8 GHz),
2 dB Max (8 to 12.4 GHz),
2.5 dB Max (12.4 to 18 GHz) |
|---|
| Isolation (dB): | 45 dB Min (0.5 to 1 GHz),
70 dB Min (1 to 2 GHz),
85 dB Min (2 to 12.4 GHz),
80 dB Min (12.4 to 18 GHz) |
|---|
| Isolation - Typ (dB): | 45 dB |
|---|
| Switching Speed - Typ: | 2 ns |
|---|
| VSWR In/Out: | 1.4:1 Max (0.5 to 4 GHz)
1.6:1 Max (4 to 8 GHz)
1.9:1 Max (8 to 18 GHz) |
|---|
| Input Power: | 2 W Average, 10 W Peak @ 1 µs PW |
|---|
| Rise/Fall Time: | 2 ns Max |
|---|
| Delay On/Off: | 20 ns Max |
|---|
| Control Signal: | TTL, "0" = Isolation, "1" = Insertion Loss |
|---|
| Power Supply: | +15 VDC @ 100 mA,
-15 VDC @ 45 mA |
|---|
| Power & Control Connector: | SMC Male |
|---|
| Connectors: | SMA Male |
|---|

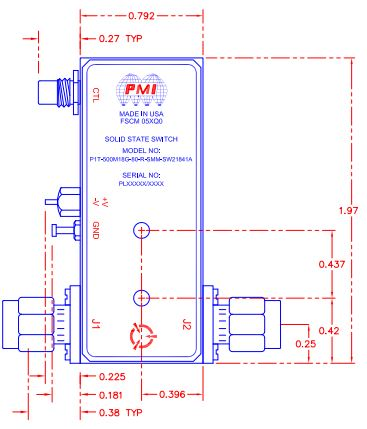

| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 °C to +85 °C |
|---|
| Temperature (Storage): | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
