P1T-500M18G-80-T-SFF Preliminary
SPST Absorptive Switch
Quantic PMI Model P1T-500M18G-80-T-SFF is single pole, single throw, absorptive solid state switch that operates over the frequency range of 0.5 to 18 GHz that has a maximum insertion loss of 3.5 dB and an isolation of 80 dB with a typical switching speed is 25 ns. Supplied with SMA female connectors in a gold plated housing that measures 1.0" x 1.0" x 0.5".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SPST |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss - Typ (dB): | 3.5 dB |
| Insertion Loss (dB): | 3.5 dB Max |
| Isolation (dB): | 80 dB Typ |
| Isolation - Typ (dB): | 80 dB |
| Switching Speed: | 50% TTL to 10% / 90% RF 25 ns Typ |
| Switching Speed - Typ: | 25 ns |
| VSWR In/Out: | 2.0:1 |
| Input Power: | 20 dBm CW |
| Survival Power: | 1 W CW, 10 W Peak, 1 µs |
| Control Signal: | TTL Logic, "0" = On, "1" = Off |
| Power Supply: | +5 VDC @ 70 mA Max, -5VDC @ 100 mA Max |
| Connectors: | SMA Female |

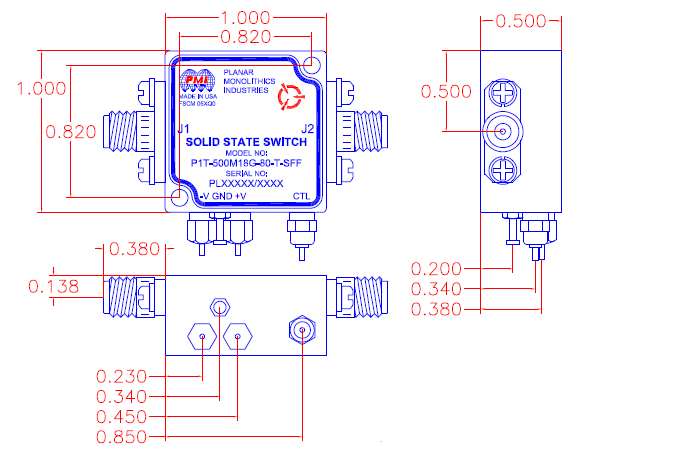

| Size: | 1.0" x 1.0" x 0.5" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Storage): | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
