P1T-500M40G-55-R-292FF * Active
Reflective, High Speed, SPST Switch

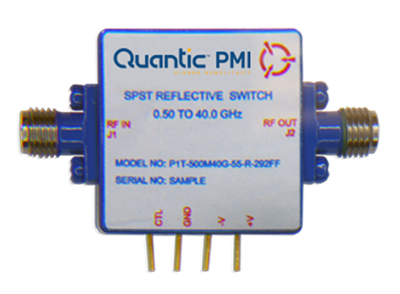

Quantic PMI Model P1T-500M40G-55-R-292FF is a reflective, high speed, single pole, single throw switch capable of switching within 100 ns. that has a frequency range of 0.5 to 40 GHz. with over 55 dB of isolation. Housing size is 1.0" x 1.0" x 0.5" with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SPST |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 0.5 to 40 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 40 |
| Insertion Loss - Typ (dB): | 5 dB |
| Insertion Loss (dB): | 5 dB Typ |
| Isolation (dB): | 55 dB Min |
| Isolation - Typ (dB): | 55 dB |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| VSWR In/Out: | 2.5:1 Typ - Measured 2.16:1 |
| Input Power: | 20 dBm CW Max |
| Control Signal: | TTL Compatible, 0 VDC On, +5 VDC Off |
| Power Supply: | ±5 VDC |
| Connectors: | 2.92mm Female |
| Size: | 1.0" x 1.0" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Storage): | -55 ºC to +125 ºC |
