P1T-5G6G-80-512-R-SFF Preliminary
SPST RF Switch

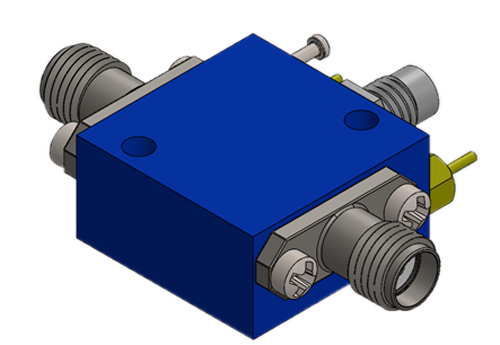

PMI Model P1T-5G6G-80-512-R-SFF is a 5 to 6 GHz SPST switch featuring 80 dB isolation, 1 W CW power handling, and 30 ns switching speed. Housing size is 0.75" x 0.75" x 0.38" with SMA female RF connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SPST |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 5 to 6 |
| Frequency Min (GHz): | 5 |
| Frequency Max (GHz): | 6 |
| Insertion Loss (dB): | 1.5 dB Max |
| Isolation (dB): | 80 dB Min |
| Switching Speed: | 30 ns Max |
| VSWR In/Out: | 1.9:1 Max |
| Input Power: | 1 W CW Max 2 W Peak Max |
| Control Logic: | TTL Logic Logic "0" = Switch On Logic "1" = Switch Off |
| Power Supply: | +5 VDC ± 5% @ 65 mA Typ -12 to -15 VDC @ 20 mA Typ |
| Connectors: | SMA Female |
| Size: | 0.75" x 0.75" x 0.38" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ˚C to +110 ˚C |
| Temperature (Storage): | -65 ˚C to +125 ˚C |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
