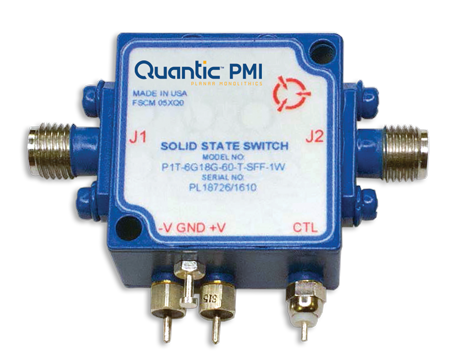

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SPST |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | 6 to 18 |
|---|
| Frequency Min (GHz): | 6 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss - Typ (dB): | 2.75 dB |
|---|
| Insertion Loss (dB): | 2.75 dB Max |
|---|
| Isolation (dB): | 65 dB Min |
|---|
| Isolation - Typ (dB): | 65 dB |
|---|
| Switching Speed: | 25 ns Typ |
|---|
| Switching Speed - Typ: | 25 ns |
|---|
| VSWR In/Out: | 2.0:1 Max - Measured 1.74:1 |
|---|
| Input Power: | 30 dBm Max |
|---|
| Control Signal: | TTL Logic "0" = Insertion Loss,
TL Logic "1" = Isolation |
|---|
| Power Supply: | +5 VDC @ 50 mA Max - Measured 41 mA,
-15 V @ 75 mA Max - Measured 70 mA |
|---|
| Power & Control Connector: | Feedthrus |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +85 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
