P1T-6G18G-80-T-SFF-F192A Preliminary
Reflective, High Speed, SPST Switch

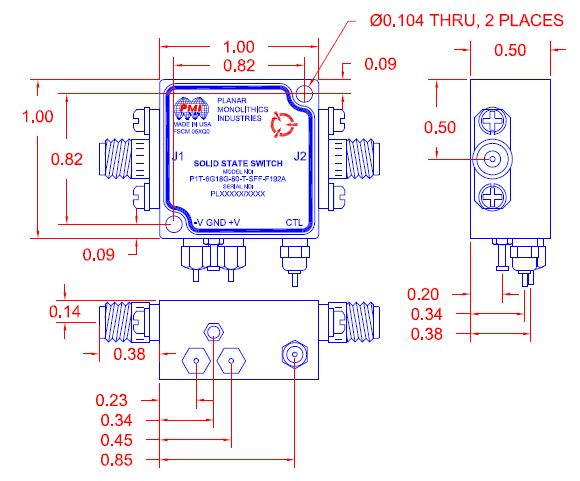

Quantic PMI Model 6G18G-80-T-SFF-F192A is a high speed, single pole, single throw, absorptive switch capable of switching with in 30 ns that operates in the frequency range of 6 to 18 GHz with over 70 dB of isolation. Housing size is 1.0" x 1.0" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SPST |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 6 to 18 |
| Frequency Min (GHz): | 6 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.5 dB Max |
| Isolation (dB): | 70 dB Min |
| Switching Speed: | 10 ns (Rise/Fall), 15 ns (Delay On), 30 ns (Delay Off) |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 1 W (30 dBm) |
| Control Signal: | TTL Logic "0" = On, TTL Logic "1" = Off |
| Power Supply: | +5 VDC @ 50 mA Max, -12 VDC @ 75 mA Max |
| Power & Control Connector: | Solder Pin |
| Connectors: | SMA Female |
| Size: | 1.0" x 1.0" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -65 to +110 ºC |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
