P1T-7G10G-70-T-SFF Preliminary
SPST Absorptive Switch
PMI Model P1T-7G10G-70-T-SFF is a 7 to 10 GHz, absorptive, SPST switch featuring 70 dB isolation, 1.8 dB insertion loss, and 10 ns rise/fall switching times. Housing size is 1.0" x 1.0" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SPST |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 7 to 10 |
| Frequency Min (GHz): | 7 |
| Frequency Max (GHz): | 10 |
| Insertion Loss (dB): | 1.4 dB Max (7 to 8 GHz) 1.8 dB Max (8 to 10 GHz) |
| Isolation (dB): | 70 dB Min |
| VSWR In/Out: | 1.6:1 Max (7 to 8 GHz) 1.9:1 Max (8 to 10 GHz) |
| Rise/Fall Time: | 10 ns Max |
| Delay On/Off: | 70 ns Max |
| Video Transient: | 5 mV Peak to Peak Max @ 20 MHz Bandwidth |
| Control Logic: | TTL Logic "0" = On "1" = Off |
| Power Supply: | +19 VDC @ 100 mA Max -19 VDC @ 45 mA Max |
| Connectors: | SMA Female |

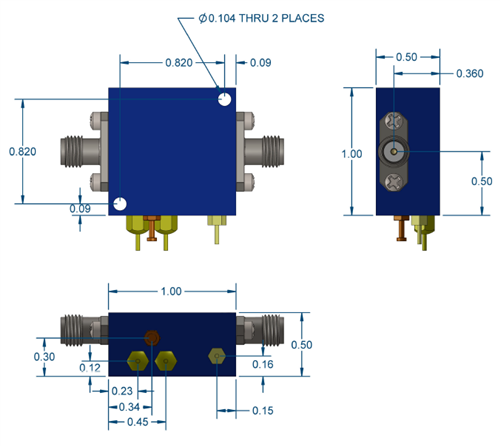

| Size: | 1.00" x 1.00" x 0.50" |
| Weight: | 1.5 oz Typ |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | 0 ˚C to +50 ˚C |
| Temperature (Storage): | -65 ˚C to +125 ˚C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
