P1T-7G10G-80-T-SFF Preliminary
SPST Absorptive Switch
PMI Model P1T-7G10G-80-T-SFF is a 7 to 10 GHz, SPST, absorptive switch featuring 80 dB isolation, 3.5 dB insertion loss, and 50 ns delay on/off switching speed. Housing size is 1.0" x 1.0" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SPST |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 7 to 10 |
| Frequency Min (GHz): | 7 |
| Frequency Max (GHz): | 10 |
| Insertion Loss (dB): | 3.5 dB Max 3 dB Typ |
| Isolation (dB): | 80 dB Min |
| VSWR In/Out: | 2.0:1 Max |
| Delay On/Off: | 50 ns Max |
| Video Transient: | 5 mV Peak to Peak @ 20 MHz Bandwidth |
| Control Logic: | TTL Logic "0" = On "1" = Off |
| Power Supply: | +5 VDC @ 100 mA Max -5 VDC @ 50 mA Max |

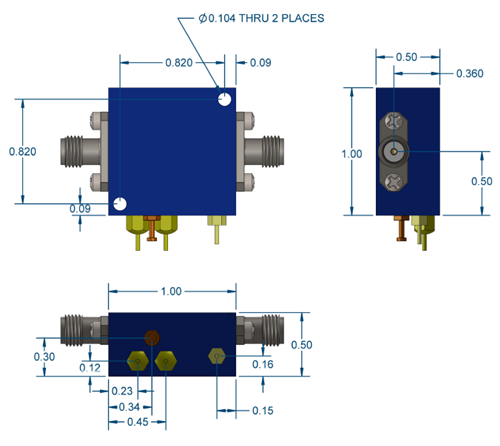

| Size: | 1.00" x 1.00" x 0.50" |
| Weight: | 1.5 oz. Typ |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ˚C to +85 ˚C |
| Temperature (Storage): | -65 ˚C to +125 ˚C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
