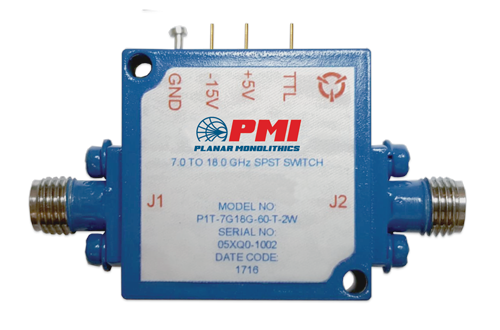

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SPST |
|---|
| Reflective / Absorptive: | Terminated |
|---|
| Frequency Range (GHz): | 7 to 18 |
|---|
| Frequency Min (GHz): | 7 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss - Typ (dB): | 3 dB |
|---|
| Insertion Loss (dB): | 3 dB Max |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Isolation - Typ (dB): | 60 dB |
|---|
| Switching Speed - Typ: | 100 ns |
|---|
| VSWR In/Out: | 1.6:1 Max (Port Selected) - Measured 1.6:1
2.0:1 Max (Port Not Selected) - Measured 1.86:1 |
|---|
| Input Power: | 2 W (30% Duty Cycle,
130 µs Pulse Width) Hot Switching |

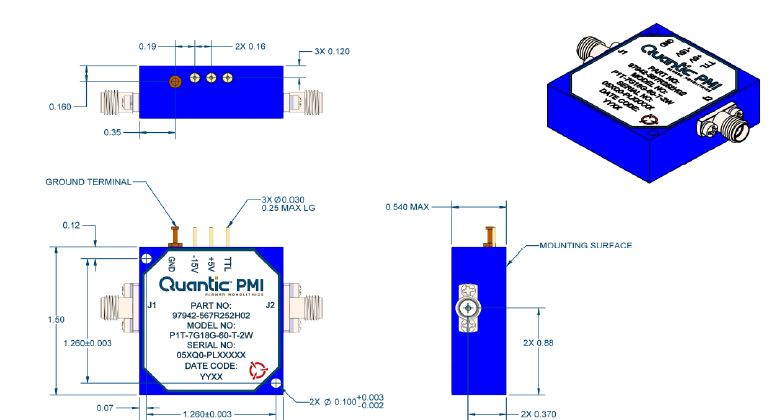

|---|
| DC Power Dissipation: | 1.25 W |
|---|
| Rise Time: | 70 ns Max - Measured 40 ns |
|---|
| Fall Time: | 100 ns Max - Measured 50 ns |
|---|
| Delay On/Off: | 150 ns Max - Measured 105 ns |
|---|
| Control Signal: | TTL |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.0" x 1.0" x 0.5",
25.40 mm x 25.40 mm x 12.70 mm |
|---|
| Sealing: | Hermetically Sealed |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -30 ºC to +85 ºC |
|---|
| Temperature (Storage): | -55 ºC to +95 ºC |
|---|
| Humidity: | MIL-STD-810, Method 507.5, Procedure II |
|---|
| Shock: | MIL-STD-810, Method 516, Procedure I |
|---|
| Altitude: | MIL-STD-202, Method 105 (50, 000 ft) |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D, Cond A |
|---|
