P1T-8G12G-70-R-SFF *

Reflective, High Speed, SPST Switch

Buy Now

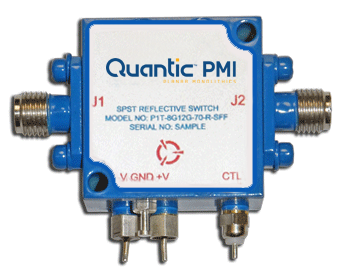

PMI Model No. P1T-8G12G-70-R-SFF is a Reflective, High Speed, Single Pole Single Throw Switch capable of switching within 50 ns maximum. The frequency range is 8.0 to 12.0 GHz. This switch has 70 dB isolation.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 8 GHz
Frequency Max: 12 GHz
Insertion Loss (Typ): 1.8 dB
Isolation (Typ): 70 dB
Reflective / Absorptive: Reflective
Switching Speed (Typ): 50 ns
Configuration: SPST
Frequency: 8.0 to 12.0 GHz
Isolation: 70 dB Min - Measured 82.44 dB
Insertion Loss: 1.8 dB Typ - Measured 1.13 dB
VSWR In/Out: 1.8:1 Typ - Measured 1.30:1
Input Power: +30 dBm Max (Survival), +20 dBm Max (Operating)
Switching Speed: 50 ns Max - Measured 48.6 ns
Impedance: 50 Ohm
Control Signal: Solder Pin, TTL Compatible,
Power Supply: +5 VDC, 20 mA Typ - Measured 10 mA,
-15 VDC, 20 mA Typ - Measured 5 mA
Connectors: SMA(F)
Size: 1.0" x 1.0" x 0.5"
Finish: Painted Blue
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond B
Shock: MIL-STD-202F, Method 213B Cond B
Vibration: MIL-STD-202F, Method 204D Cond B
Altitude: MIL-STD-202F, Method 105C Cond B
Temperature Cycle: MIL-STD-202F, Method 107D Cond A
