P1T-8G40G-65-T-292FF-1NS-LVPECL Active
SPST Absorptive Pin Diode Switch
Additional Documents

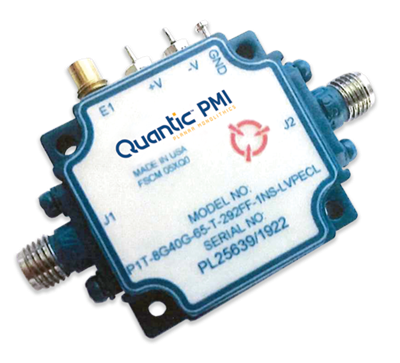

Quantic PMI Model P1T-8G40G-65-T-292FF-1NS-LVPECL is an absorptive, single pole, single throw, pin diode switch that operates from 8 to 40 GHz that has 55 dB minimum and an insertion loss of 6.8 dB. This model incorporates a single ended LVPECL compatible driver for easy system integration. Housing size is 1.2" x 1.3" x 0.5" with SMC male connector for control and 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SPST |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 8 to 40 |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 5.5 dB Typ, 6.8 dB Max |
| Isolation (dB): | 65 dB Typ, 55 dB Min |
| Switching Speed: | 5 ns Typ, 10 ns Max |
| Switching Speed - Typ: | 5 ns |
| VSWR In/Out: | 2.0:1 Typ, 2.2:1 Max |
| P1dB: | +13 dBm Min |
| Input Power: | 17 dBm CW Max |
| Rise/Fall Time: | 0.9 ns Typ, 1 ns Max |
| Control Signal: | Single Ended LVPECL "1" = On |
| Power Supply: | +8 to +15 VDC @15 mA Max, -8 to -15 Vdc @ 40 mA Max |
| Power & Control Connector: | SMC Male |
| Connectors: | 2.92mm Female |
| Size: | 1.2" x 1.3" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
