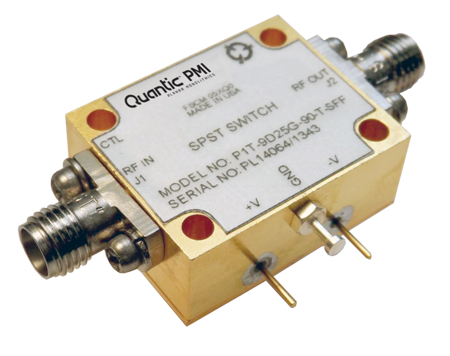

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SPST |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | 9.25 ± 0.03 |
|---|
| Frequency Min (GHz): | 9.22 |
|---|
| Frequency Max (GHz): | 9.28 |
|---|
| Insertion Loss - Typ (dB): | 2.7 dB |
|---|
| Insertion Loss (dB): | 2.7 dB |
|---|
| Isolation (dB): | 90 dB Min |
|---|
| Isolation - Typ (dB): | 90 dB |
|---|
| Switching Speed - Typ: | 20 ns |
|---|
| VSWR In/Out: | 1.9:1 Max - Measured 1.50:1 |
|---|
| Input Power: | 23 dBm CW Max (Operating) |
|---|
| Rise/Fall Time: | 20 ns Max (Measured 6 ns Rise & 4ns Fall & 20 ns Delay) |
|---|
| Control Signal: | TTL Compatible,
"0" = J1-J2 Isolation,
"1" = J1-J2 Insertion Loss |
|---|
| Power Supply: | +5 VDC @ 120 mA - Measured 46 mA
-5 VDC @ 50 mA - Measured 48 mA |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.0" x 0.8" x 0.4" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +85 ºC |
|---|
| Temperature (Storage): | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond B |
|---|
| Vibration: | MIL-STD-202F, Method 204B Cond B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
|---|
