P1T-9D2G10G-80-R-SFF Active
Reflective SPST PIN Diode Switch
Additional Documents

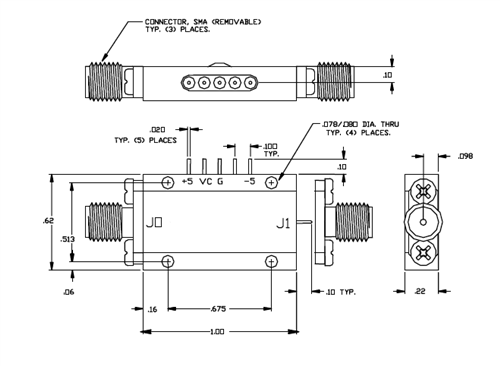

PMI Model P1T-9D2G10G-80-R-SFF is a reflective, single pole, single throw RF switch operating over the 9.2 to 10 GHz frequency range that features 15 ns switching speed, 80 dB isolation, and 2.5 dB insertion loss. Housing size is 1.0" x 0.62" x 0.22' with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SPST |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 9.2 to 10 |
| Frequency Min (GHz): | 9.2 |
| Frequency Max (GHz): | 10 |
| Insertion Loss (dB): | 2.5 dB Max |
| Isolation (dB): | 80 dB Min |
| Switching Speed: | 15 ns Max (50% TTL - 10/90% RF) |
| VSWR In/Out: | 1.5:1 Max |
| Input Power: | +20 dBm Max (Operational) +27 dBm Max (Survival) |
| Control Signal: | TTL Logic "1" = Insertion Loss "0" = Isolation |
| Power Supply: | +5 VDC @ 30 mA Max -5 VDC @ 30 mA Max |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - Removable |
| Size: | 1.0" x 0.62" x 0.22' |
| Finish: | Painted Blue |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -60 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
