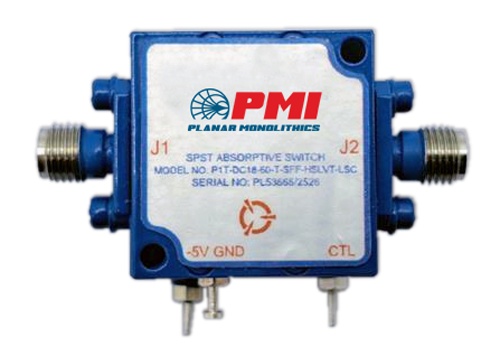

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SPST |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | DC to 18 |
|---|
| Frequency Min (GHz): | DC |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 4.5 dB Max |
|---|
| Isolation (dB): | 55 dB Min (0.01 to 2 GHz),
60 dB Min ( 2 to 12 GHz),
70 dB Min ( 0.012 to 18 GHz) |
|---|
| VSWR In/Out: | 2.0:1 Max |
|---|
| Input Power: | 20 dBm |
|---|
| Rise Time: | 10 ns Max |
|---|
| Fall Time: | 10 ns Max |
|---|
| On Time: | 30 ns Max |
|---|
| Off Time: | 25 ns Max |
|---|
| Video Transient: | 300 MHz BW (2 to 18 GHz): 40 mV P-P Max
20 MHz BW (2 to 18 GHz): 25 mV P-P Max |
|---|
| Control Signal: | TTL Logic "0" = ON
TTL Logic "1" = OFF |
|---|
| Power Supply: | -5 VDC @ 25 mA Max |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Weight: | 1.5 oz Typ |
|---|
| Finish: | Gold Plated |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 °C to +85 °C |
|---|
| Temperature (Storage): | -55 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107 COND. A |
|---|
