P1T-DC40-65-T-292FF-1NS-OPT26-LVTTL-OPT28 Preliminary
SPST Absorptive, FET Switch
Quantic PMI Model No: P1T-DC40-65-T-292FF-1NS-OPT26-LVTTL-OPT28 is a SPST Absorptive, FET switch that operates from 2 to 8 GHz with over 55 dB of isolation This model incorporates a TTL compatible driver for easy system integration. Housing size is 1.2" x 1.3" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SPST |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 2 to 8 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 8 |
| Insertion Loss (dB): | 2.5 dB Typ, 3 dB Max |
| Isolation (dB): | 65 dB Typ, 55 dB Min |
| Switching Speed: | 6 ns Typ, 7 ns Max |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 17 dBm CW Max |
| Rise/Fall Time: | 1 ns Typ, 2 ns Max |
| Control Signal: | TTL |
| Control Logic: | "1" = On @ 0 V to 1.2 V "0" = Off @ 3.3 V to 5.5 V |
| Power Supply: | +5 VDC @ 15 mA Max -5 VDC @ 40 mA Max |
| Power & Control Connector: | SMC |
| Connectors: | SMA Female |

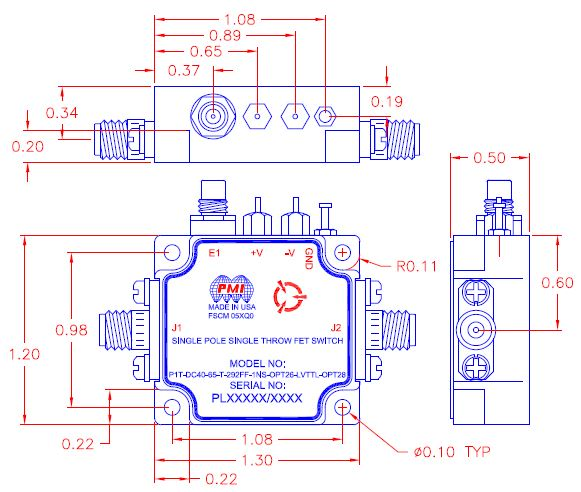

| Size: | 1.2" x 1.3" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
