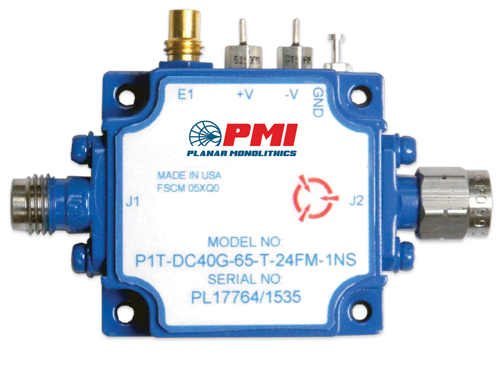

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SPST |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | DC to 40 |
|---|
| Frequency Min (GHz): | DC |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Insertion Loss - Typ (dB): | 5.5 dB |
|---|
| Insertion Loss (dB): | 5.5 dB Typ,
6.8 dB Max |
|---|
| Isolation (dB): | 65 dB Typ,
55 dB Min |
|---|
| Isolation - Typ (dB): | 65 dB |
|---|
| Switching Speed: | 5 ns Typ, 6 ns Max |
|---|
| Switching Speed - Typ: | 5 ns |
|---|
| VSWR In/Out: | 2.0:1 Typ, 2.2:1 Max - Measured 2.13:1 |
|---|
| Input Power: | 17 dBm CW Max |
|---|
| Rise/Fall Time: | 0.9 ns Typ, 1 ns Max - Measured 0.6 ns |
|---|
| Control Signal: | TTL Logic "1" = ON,
TTL Logic "0" = OFF |
|---|
| Power Supply: | +8 to +15 VDC @ 15 mA Max,
-8 to -15 VDC @ 40 mA Max |
|---|
| Power & Control Connector: | SMC Male (Control)
Feedthrus (Power) |
|---|
| Connectors: | 2.4mm Female / Male |
|---|
| Size: | 1.2" x 1.3" x 0.5" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +85 ºC |
|---|
| Temperature (Storage): | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
