P1T-DC40G-65-T-292FF-1NS-OPT18G Active
SPST Absorptive FET Switch
Additional Documents
- Product Feature
- PL16911 - Unit Data
- PL18450 - Unit Data
- PL20018 - Unit Data
- PL28137 - Unit Data
- PL28138 - Unit Data
- PL28139 - Unit Data
- PL28140 - Unit Data
- PL32547 - Unit Data
- PL34836 - Unit Data
- PL34837 - Unit Data
- PL37368 - Unit Data
- PL37369 - Unit Data
- PL42089 - Unit Data
- PL42090 - Unit Data
- PL42091 - Unit Data
- PL42092 - Unit Data
- PL42595 - Unit Data
- PL42596 - Unit Data
- PL42089 - Unit Data
- PL42090 - Unit Data
- PL42091 - Unit Data
- PL42092 - Unit Data
- PL52756 - Unit Data

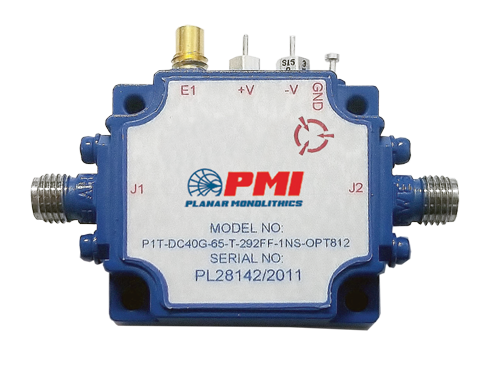

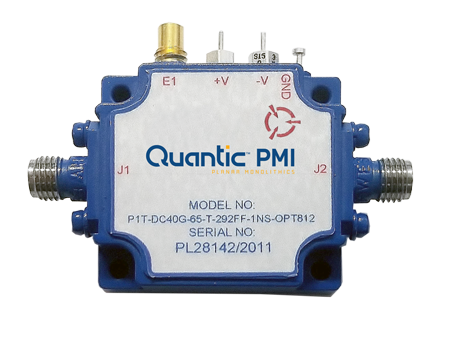

Quantic PMI Model P1T-DC40G-65-T-292FF-1NS-OPT18G is a SPST Absorptive, FET switch that operates from DC to 18 GHz with a typical isolation is 60 dB, an insertion loss of 4.5 dB typical and a 6 ns switching speed (On/Off) with a 2 ns Rise/Fall. Housing measures 1.3” x 1.2” x 0.5” with an SMC male for control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SPST |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | DC to 18 |
| Frequency Min (GHz): | DC |
| Frequency Max (GHz): | 18 |
| Insertion Loss - Typ (dB): | 4.5 dB |
| Insertion Loss (dB): | 4.5 dB Typ, 5 dB Max |
| Isolation (dB): | 60 dB Typ, 55 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 6 ns Typ, 7 ns Max |
| Switching Speed - Typ: | 6 ns |
| VSWR In/Out: | 2.0:1 Typ, 2.2:1 Max - Measured 1.65:1 |
| Input Power: | 17 dBm CW Max |
| Rise/Fall Time: | 1 ns Typ, 2 ns Max - Measured 1.8 ns |
| Video Transient: | 0.3 GHz BW (2 to 18 GHz): 85 mV P-P, 0.02 GHz BW (2 to 18 GHz): 15 mV P-P |
| Control Signal: | TTL "1" = On |
| Power Supply: | +8 to +15 VDC @ 15 mA Max, -8 to -15 VDC @ 40 mA Max |
| Power & Control Connector: | SMC Male |
| Connectors: | SMA Female |
| Size: | 1.3” x 1.2” x 0.5” |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
