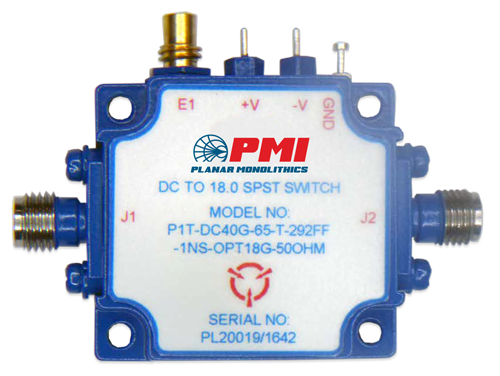

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SPST |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | DC to 18 |
|---|
| Frequency Min (GHz): | DC |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss - Typ (dB): | 4.5 dB |
|---|
| Insertion Loss (dB): | 4.5 dB Typ,
5 dB Max |
|---|
| Isolation (dB): | 60 dB Typ,
55 dB Min |
|---|
| Isolation - Typ (dB): | 60 dB |
|---|
| Switching Speed: | 6 ns Typ,
7 ns Max |
|---|
| Switching Speed - Typ: | 6 ns |
|---|
| VSWR In/Out: | 2.0:1 Typ - Measured 1.77:1 2.2:1 Max |
|---|
| Input Power: | 17 dBm CW Max |
|---|
| Rise/Fall Time: | 1 ns Typ - Measured 2 ns
2 ns Max |
|---|
| Video Transient: | 0.3 GHz BW (2 to 18 GHz): 85 mV P-P
0.02 GHz BW (2 to 18 GHz): 15 mV P-P |
|---|
| Control Signal: | TTL "1" = On - Internally terminated to 50 Ohm |
|---|
| Power Supply: | +8 to +15 VDC @ 15 mA Max,
-8 to -15 VDC @ 40 mA Max |
|---|
| Power & Control Connector: | SMC Male |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 33.02 mm x 30.48 mm x 12.70 mm,
1.30' x 1.20" x 0.50" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 °C to +85 °C |
|---|
| Temperature (Storage): | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107 |
|---|
