P1T-DC40G-65-T-292FF-1NS-OPT18G-55 Active
SPST Absorptive, FET Switch
Additional Documents

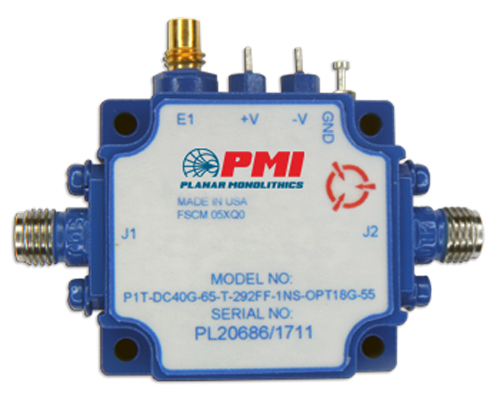

PMI Model P1T-DC40G-65-T-292FF-1NS-OPT18G-55 is a SPST Absorptive, FET switch that operates from DC to 18 GHz that has a typical isolation is 60 dB with insertion loss of 4.5 dB typical and a 6 ns switching speed (On/Off) and a 2 ns Rise/Fall. Housing size is 1.3” x 1.2" x 0.5” with SMC male connector for control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SPST |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | DC to 18 |
| Frequency Min (GHz): | DC |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 4.5 dB Typ, 5 dB Max |
| Isolation (dB): | 60 dB Typ, 55 dB Min |
| Switching Speed: | 6 ns Typ, 7 ns Max |
| Switching Speed - Typ: | 6 ns |
| VSWR In/Out: | >2.0:1 Typ 2.2:1 Max |
| Input Power: | 17 dBm CW Max |
| Rise/Fall Time: | 1 ns Typ 2 ns Max |
| Video Transient: | 0.3 GHz BW (2 to 18 GHz): 85 mV P-P 0.02 GHz BW (2 to 18 GHz): 15 mV P-P |
| Control Signal: | TTL "1" = On |
| Power Supply: | +5 VDC @ 15 mA Max -5 VDC @ 40 mA Max |
| Power & Control Connector: | SMC Male |
| Connectors: | SMA Female |
| Size: | 1.2" x 1.3" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
